ICELED GEM

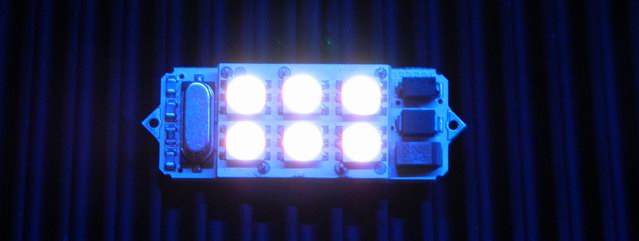

Gems are available in two versions, "plug'n'play" or "rough". The miniature plug'n'play format (shown left) will clip directly in place of  the 1.5" long filament lamp frequently found in existing interior light fixtures. The rough gem  (shown right) is the same device housed in a rugged, watertight enclosure for use in exposed locations - or where no pre-existing light fitting is available.

APPLICATIONS

Both types produce a wide-angle beam (90 degrees) suitable for floodlighting at close range. Typical applications include interior dome lights, foot-well illumination, luggage and engine bay lighting. In particular the ruggedised version is also ideal for 'filling-in' gaps in underbody lighting such as around the insides of wheel-arches. It will also find plenty of uses on Motorbikes.

The Plug'n'play version can pick up its power directly from any suitable light fitting but also comes with a detachable cable that can be used to provide power and/or data for linking to ICELED controllers. The rough gem has a fixed cable for supplying power and optional data.





CONTROL

Both types of gem can be used with or without external controllers. A built-in programme allows them to perform a variety of functions simply by connecting them to a 12 Volt DC supply. This makes them ideal as 'starter' or 'standalone' light sources suitable for use wherever 12 Volts are present e.g. inside PC cases.

SPECIFICATIONS

The maximum current drain is 0.2 Amps. Typical drain is only 0.1 Amps. On-board current regulation guarantees that Gems operate consistently at peak intensity over a wide supply Voltage range of between 10 and 16 Volts DC. Reverse polarity and over-voltage protection are also built in. Dimension of plug'n'play Gem W 1.5" H 0.6" D 0.4" (excluding contacts) rough Gem W 2" H 1.2" D 0.9" (excluding mounting flanges)
Buy from Litewave

Gem "Plug'n'Play" - £37.50

Gem "Rough" - £39.50

Gem "Aluminium" - £43.50

GEM TYPE

ICELED Zap+ controller - £38 each

2 x ICELED Gems & Zap+ Controller - from £105

GEM TYPE

Full Footwell Kit: 4 ICELED Gems & Zap+ Controller - from £178

GEM TYPE



For International sales contact sales@iceled.co.uk
