ICELED ZAP is a compact controller with some very powerful features. It provides an inexpensive means for controlling one or more ICELED light source(s) where the built-in standalone function doesn't provide enough control.

Using just two buttons you can easily dial-up any static colour, produce a phasing colour sweep, get colour change to music beat (using the built-in microphone) or create a strobe effect that has a variable flash-rate and also responds to sound.

· Standby/Bypass Effectively turns off light-sources by blacking them out or passes through external ICELED data if present

· Static colour Provides fine-tuning of any particular hue or shade

· Phasing colour Automatically creates smooth sweeps through one of four different colour ranges

· Beat to colour Sequences random colours in time with an audio beat, with adjustable fade-out

Each mode has a number of variable parameters e.g. colour, speed etc. and these are all adjustable and stored in non-volatile memory.

CONNECTIONS

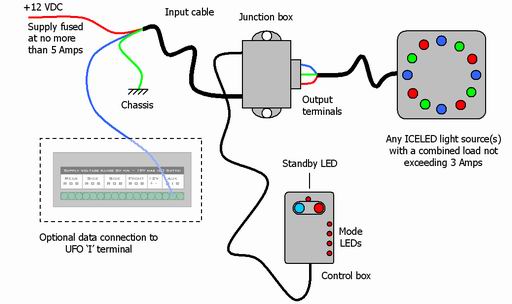

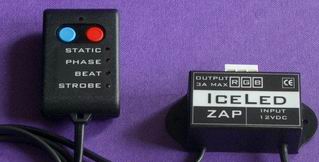

The junction box takes in power and has a standard ICELED three-way terminal block for the connections out to the light source(s). The wired remote is a small hand-held unit measuring 58 x 36 x 16 mm, with 5 status LEDs.

The input lead also has a data-in wire that can optionally be run to UFO or ZEN allowing ZAP to pass this colour information through to the connected lightsource(s) if desired. So apart from having the option of synchronising interior lighting to UFO, it is also possible to 'ZAP' a lightsource with an alternative effect e.g. to strobe an individual ZEN zone - or even a tube connected to a UFO channel.

SPECIFICATIONS
Nominal supply voltage: 12 Volts DC
Standby current drain: 0.01 Amps
Maximum load current: 3 Amps
Audio sensitivity: 54dB to 102dB
Data input: Any ICELED controller output
