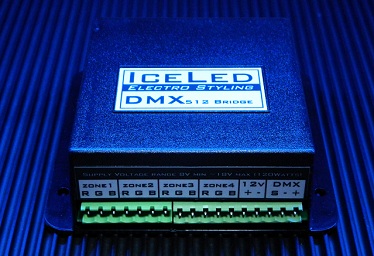

The ICELED DMX512 Bridge

The ICELED DMX Bridge allows any of the ICELED Products (including colour changing LED Tape, Modules, and Bars) to be controlled via a DMX Controller. Conventional DMX512 light sources have to have their own 9-bit channel address locating the device at one of the 512 possible addresses. They also require a separate power cable. The ICELED bridge only needs one address to collect data for up to four independent light sources and supplies both power and data down a single cable to each light source.

This DMX512 Bridge serves as a distribution point for both power and data – greatly simplifying the task of installing and addressing multiple light sources. Four independent zones of control are available occupying a total of 12 sequential DMX channel addresses. Each zone is assigned three DMX channels to provide separate control over the individual colour components. For maximum programming flexibility one of two different colour models can be selected using a DIP switch: “Red, Green, Blue” or “Hue, Saturation, Brightness”

Specifications: Nominal supply voltage: 12 Volts DC (1)
Standby current drain: 0.02 Amps (all channels zero)
Maximum load current: 10 Amps
Data input: DMX512
Dimensions: 120mm x 112mm x 45mm
Connects to all ICELED light sources including our other RGB Products when used with a Flexidriver


Download User Manual

Buy Direct from ICELED

ICELED DMX512 Bridge - £78.00
Quantity :

All orders despatched directly from ICELED
