ICELED FLEXIDRIVER provides three channels of proportional power delivery to any 12V DC lighting load up to a total maximum of 180 Watts. Typically, FLEXIDRIVER would be used to allow ICELED controllers to interface to common RGB LED Light strips with built-in current control for 12V operation (available from Litewave). Typically one FLEXIDRIVER will drive up to 25metres of flexible RGB Tape. Stand-alone operation is also available for simple colour-changing applications.

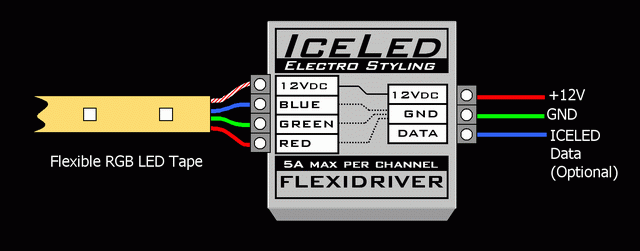

Wiring

FLEXIDRIVER interfaces the ICELED three-wire digital control system to four-wire LED products (common +ve, three -ve returns)

All connections are made via screw-terminals on the outside of the casing.

CONTROL

Flexidriver can be used with or without an external controller. A built-in programme allows this LED driver to perform a variety of functions simply by connecting it to a 12 Volt DC supply. This provides basic, low-cost, control over "dumb" RGB LED products.

SPECIFICATIONS

Maximum "through" current 15 Amps. Dimensions: 65mm; H 50mm; D 15mm

Download User Manual
Buy Direct from ICELED
ICELED Flexidriver - £35.00
Quantity :

All orders despatched directly from ICELED
